DINIO

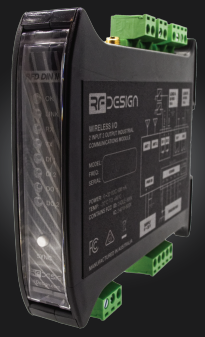

RFD DIN-IO - an easy to use industrial telemetry and electrically isolated Input / Output device with 2 Fully Isolated Digital Inputs and 2 Fully Isolated Clean contact output relays.
The DIN-IO allows bi-directional telemetry and data communications between a pair of devices. Each device interfaces with a completely isolated RS485 / RS422 port (depending on the user configuration). The isolated RS422 port makes the RFD DIN Rail IO a great choice for use in noisy and industrial environments.
Features
- Secure, encrypted over the air communications
- 9-32V (DC) input voltage range
- 2 opto-Isolated digital inputs
- 2 clean contact isolated relay outputs
- Fully isolated RS485/RS422 serial interface with switchable termination for Use In Noisy & Industrial Environments
- Simple one-button pairing sequence
- Compact DIN rail mounted enclosure
- Industrial temperature range (-20C to +60C)
- Modbus Capable RS485 Expansion
- 8x Status LEDS
- Slim profile (101 x 22.5 x 120mm)
- Bi-directional Long-Range Radio Link RFD Radios
- Simple One-Button Pairing Sequence
RF Features
- Bi-directional Radio link using RFD proven modem modules
- License- free 900MHz ISM Radio Band
- RF transmit power up to 30dBm providing support for long range connection
- Dual antenna ports with diversity support
- High performing receiver sensitivity (112dBm)
- Frequency Hopping Spread Spectrum for interference resilience
Applications
- Remote Control and Monitoring Systems
- Wireless RS485/422 bus extension
- Industrial Control Systems
- Factory Automation
- Cable replacement for existing equipment
- Building Automation
- Wireless Alarms and Security Systems
Accessories
The RFD DIN IO will require antennae and co-axial cable
Components to suit the installation. The following accessories are available from RF Design;
- RPSMA to N bulkhead male ‘tail’
- RPSMA Extension Cables
- 3dB/6dB indoor whip antennas
- 5dB collinear outdoor antenna
- 6dB Omni-directional outdoor antenna
Documentation:
RFD DINIO User Manual V2.2.pdf
