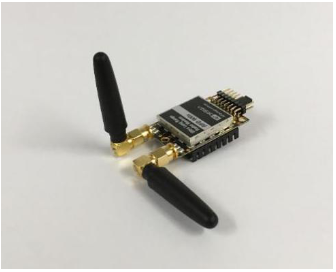

RFD900x
The RFD900x is part of our best-selling x series of data modems; a high performance 900MHz ISM band radio modem covering the 902-928MHz frequency band.
Designed for long range data communication applications which require best-in-class radio link performance. The RFD900x radio modem - designed, tested and inspected in Australia. NDAA compliant.
Geographic versions compliant with Australian, New Zealand and United States of America standards are available.
Models:
| Modem Model | Maximum Transmit Power(dBm) | Frequency Band/s (MHz) | Number of Channels | Max Duty Cycle (%) |
| 900x | 30 | 902-928 | 51 | 100 |
| 900x-AU (Australia) | 30 | 915-921 and 922-928 | 23 | 100 |
| 900x-NZ (New Zealand) | 30 |
920.75-927.25 |
25 | 100 |
| 900x-US (USA and Canada) | 30 | 902-915 and 915-928 | 51 | 100 |
Key Features:
- Long-range data link capable of transmitting more than 40km depending on parameter settings and antennas.
- Compatible with the MavLink environment.
- Maximum Air data rate: 224kbit/s.
- AES Hardware accelerated encryption.
- Optional RC PPM or SBUS Passthrough. (SiK firmware)
- GPIO Pin Mirroring capability. (SiK firmware)
- RF front-end filtering.
- ESD-protected and filtered IO pins.
- Firmware options available to achieve several network topologies including point-to-point SiK, Multipoint (MP) mesh and Asynchronous mesh.
- User updateable firmware and parameters
- License-free use in Australia, Canada, USA, New Zealand. (Depending on regional variants)
- Compatibility with ux series modems.
Note:
- The ux and x series modems are not compatible with older "a" or “+” series modems .
Compliance:
- Regional version modems are compliant with regional regulation
- NDAA compliant
The RFD900 is designed to be compliant with the following standards:
- FCC Part 15.247 (Frequency hopping and digitally modulated intentional radiators)
- AS/NZS 4268:2012 (Radio equipment and systems – short-range devices
Note:
- Regionally locked version of the modems may restrict or limit the performance and available parameter settings compared to the unlocked modems.
- Ultimately it is up to the user to identify the radio frequency regulation applicable to their areas of operation and ensure their modems parameters are set correctly.
Specifications:
|
Air Data transfer rates available: |
12, 56, 64, 100, 125, 200, 188 and 224 kbit/sec (User settable depending on firmware and region variant, 64kbit default)* |
|
UART data transfer rates: |
1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200, 230400, 460800, 1200000 baud (User settable, 57600 default)* |
|
Output Power: |
1W (+30dBm) |
|
Receive Sensitivity: |
>-102dBm at 12kbps* |
|
Size: |
30 mm (wide) x 57 mm (long) x 12.8 mm (deep) - Including RF Shield, PCB and Heatsink. Bare Version 30 mm (wide) x 42.5 mm (long) x 6.25mm (deep) |
|
Weight: |
14g 7g Bare |
|
Power supply: |
+5 V nominal, (+3.5 V min, +5.5 V max), ~1.2A peak at maximum power
|
|
Temp. Range: |
-40 to +85 deg C
|
*values are correct as of version 3.57 SiK firmware
Interfaces:
- RF: 2 x RP-SMA antenna connectors
- Serial: Logic level TTL (+3.3V)
- Power Input: +5v, ~1.2A max peak (at maximum transmit power)
- GPIO: 6 General purpose IO (Digital, PWM/SBUS capable).
Documentation:
RFD900x Multipoint User Manual V1.0.pdf
RFD900x Peer-to-peer V3.X User Manual V1.4.pdf
